KWQ1 Magnetic Welding Holder
Triangle Welding Magnet · Multi-Angle · CE/GS Certified
Select Model
Specifications
Holding Force
50 kg
Weight
0.88 kg
Dimensions
163 × 113 × 21 mm
Fixed Angles
45° · 90° · 135°
Min. Order Qty
100 pcs
Material
Ferrite Magnet · Steel Shell
Product Details
| Material | Ferrite Magnet · Steel Shell |
| Function | Welding Positioning · Pipe Fitting · Steel Fabrication · Assembly |
| Certification | CE · GS · RoHS · DIN |
| Applications | Structural steel welding, pipe installation, metal fabrication workshops, OEM tooling |
Key Features
- Ferrite magnet, strong holding force. Durable steel shell reinforced with rivets

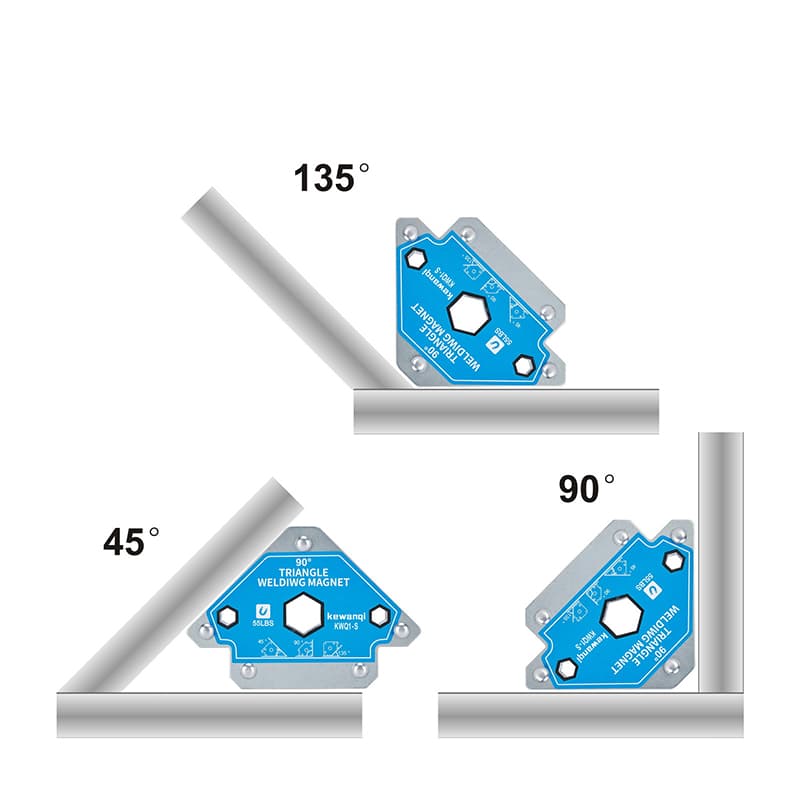

- Multi-angle design: 45° · 90° · 135° positioning
- Brand customization, private label & product modification available
Certifications
CEGSRoHSDIN
